HANKOOK ADVANCED MATERIALS EXTRUDER
Aluminum Extrusion Products
Aluminum Extrusions.
Aluminum extrusions are made by heating aluminum alloy billets at high temperatures and extruding them through specially shaped dies to continuously form products of various shapes.
Depending on requirements, long aluminum extrusions with specific cross-sectional shapes can be manufactured, allowing for a wide range of applications.
With features such as corrosion resistance, low density, and high strength, aluminum extrusions are essential in modern industries such as transportation and aerospace, where lightweight materials are critical, as well as in marine and chemical industries requiring corrosion resistance.

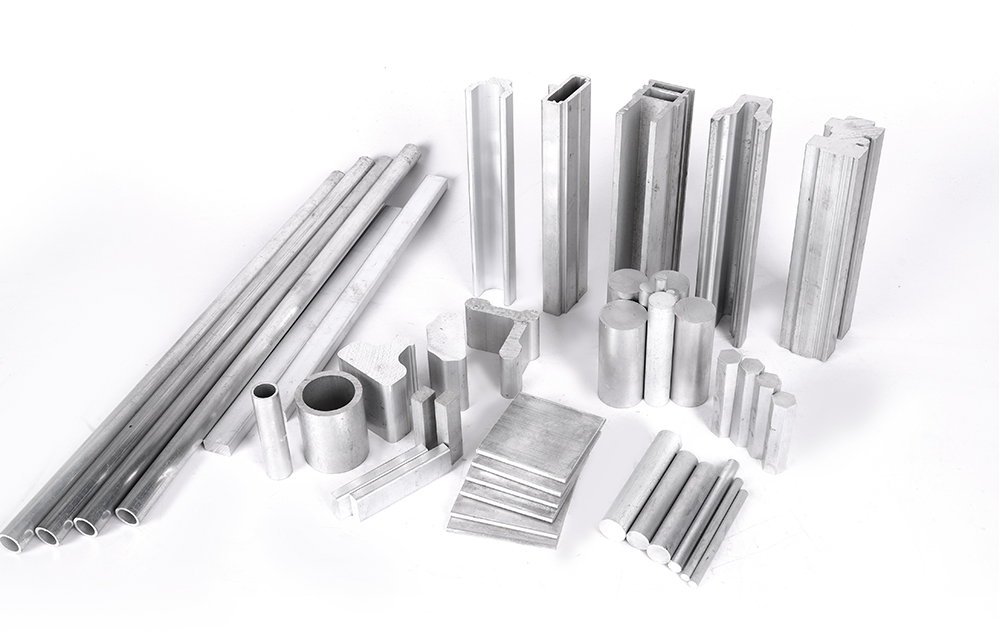

Main Product Categories
Rod Bars
Capable of producing products with outer diameter up to 40mm
Flat Bars
Capable of producing products with width up to 100mm
Pipes
Capable of producing pipes with outer diameter up to 40mm
Square Bars
Capable of producing products with width and length up to 30mm
Hexagonal Bars
Capable of producing products with outer diameter up to 30mm
Structural Profiles
Availability depends on the shape/design
Production Materials
Aluminum alloy shaped products(excluding pipes)
10xx 20xx 30xx 40xx 60xx 70xx
Aluminum pipes
10xx 30xx 60xx 7005(7N01)
Core Technologies and Product Features
01.
Equipped with a 2200MT-class extruder optimized for forming small-diameter products using high-strength duralumin materials
02.
Possesses extrusion die manufacturing technology that maximizes quality and productivity
03.
Quality control aimed at customer satisfaction
04.
Capable of responding to all temper types
05.
Capable of extruding various aluminum alloy materials
06.
Able to manufacture extrusions in shapes requested by client companies
Production Process
Extrusion
PROCESS 01.
Billet cutting
Extrusion
Primary cutting
Post-Processing
PROCESS 02.
Stretching
Front/rear cutting
Packaging
Heat Treatment and Inspection
PROCESS 03.
Solution heat treatment
Aging
Final inspection
